O.T. Equipments

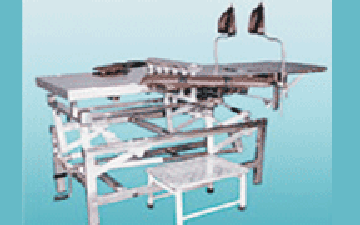

Mechanical Operation Table (Height Adjustable)
- Size : L1820mm x W 560mm x Ht. Adjustable from 750mm to 920mm
- Stainless steel top with kidney bridge.
- Detachable & folding foot end
- Height adjustment and head low / up position by screw Mechanism.

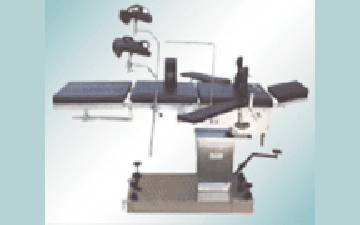

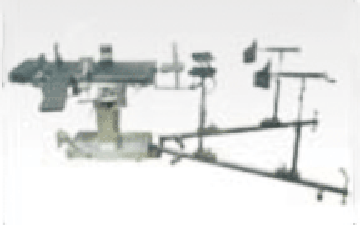

C-Arm Compatible O.T. Table with Ortho Attachments
- 1. Heavy Frame for fixing gears on the side of table which does not interfere with the movement of the C-arm.
- 2. Rectangular Hydraulic pump system occupies minimum space thus less interference to C-arm movement.
- 3. Trendleburg, Lateral tilt, back Break can be achieved by operating corresponding gear.
- 4. Shoulder support, Radioluscent arm board, lateral support, litho rods, screen, Perinial support, Interlock femur nail fixation arrangement , Traction kit, Knee Chest position spine surgical attachment provided.
- Technical Specifications:
Table Top : 21" X 72"
Elevation : 34" - 43.5" (Without mattress)
Trendleburg : Each 30 degree
Lateral tilt : Each 30 degree
Back Break : 90 degree up.
Weight without attachemnts : 250 kg.

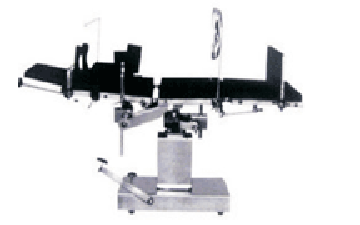

C- Arm Compatible OT Table
-
These OT tables are designed for meeting the complete needs of orthopaedic surgeons conducting radiographic & general surgeries. Further the heavy-duty castors provided with it ensures easy mobility.
Features:
- Radioluscent top allowing clear image on C-arm monitor. • Eccentric tabletop giving maximum coverage for C-arm reversible head and leg position. • Heavy frame provided for fixing of gears on the sides of table which do not interfere with the movement of C-arm. • Comes with rectangular hydraulic pump system which occupies minimum space, thus less interference to C-arm movement. • Back break, trendleburg, lateral tilt can be achieved by operating corresponding gear.
Additional Features:
- Shoulder support Radioluscent arm board lateral support screen Perennial support Interlock femur nail fixation arrangement Traction kit Knee Chest position spine surgical attachment provided. litho rods
Technical Specifications
- Table Top: 21" X 72" • Elevation: 34" - 43.5" (Without mattress) • Trendleburg: Each 30 degree • Lateral tilt: Each 30 degree • Back Break: 90 degree up. • Weight without attachments: 250 kg.
- A pair of swing type rails.
- Pre - treated & epoxy powdercoated.

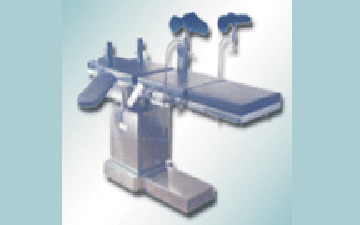

Electrically Operated O.T. Table.
- Lateral tilt, trendleburg, back break can be achieved by corresponding gear. • Trouble free hydraulic pump providing elevation from 70 cm to 100 cm. • Table provided with brass blocks and comes with other accessories including arm board, leg rest, mattress, shoulder support & one handle. • Tabletop can be rotated to 360 degree's on its axis without shifting the base. • Provision of detachable head and leg ends. • Optional orthopedic & neurological attachments.
- Technical Specifications:
- Table Top: 48.5 cm x 180 cm • Elevation: 70cm - 100 cm • Trendleburg: Each 30 degree
- Lateral tilt: Each 30 degree • Back Break: 90 degree up.
- Weight : 250 kg.
Hydraulic Operation Table (Deluxe)
- Features :
- Swivel cstors (2 with brakes) stainless steel top
- Height adjustable mechanically
- Two Section perforated CRCA sheet top.
- Head rest, kidney bridge, reverse trendelrnberg also maneuvered with separate screws
- leg side detachable
O.T. Lights

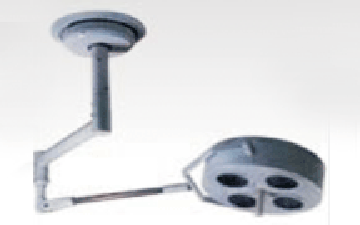

Four Reflector Single Dome Light
- Salient Features:
- Built in heat resistant filters.
- Low power consumption
- Spring balanced control.
- Sterilizable cum focusing handle.
- . Constant voltage transformer with intensity control.
Technical Specification:
- Diameter of Dome : 20"
- Halogen lamps : 4 nos of 24V 50W each
- Light Output : 7000 Lux maximum

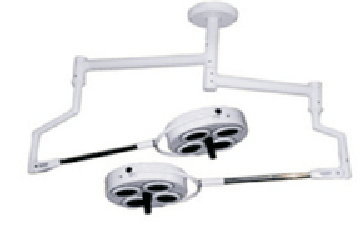

4 Reflector - Dual Shadowless Light - Ceiling Mounting
- Dome - 20" Dia.
- Reflector - 5" x 4 Each Bulb - 24V 70W x 4 Each
- Intensity - 75000 Lux Colour
- Temperature - 4300 ± 10%K Heat Rise - 2°C – 4°C Field Diameter - 150-200 mm Input - 220V AC, 50/60 Hz
